This tutorial describes how to use BlueJ on the Raspberry Pi to to interact with simple electronics using the Pi's GPIO pins (General-Purpose Input/Output pins). It is not intended to be a complete description of how to use the pins: for that, see the sections called Under the Hood.
The tutorial is divided into two parts. In the first we'll look at output and lighting an LED, in the second we'll look at input from a button.
If you have not got BlueJ installed in your Raspberry Pi, please install it by following the instructions here.
In this section, we will connect a LED to a Raspberry Pi and turn it on and off by direct object manipulation using BlueJ. This tutorial will make use of the project LEDButton, which you should download and open in BlueJ running on the Raspberry Pi.
For this experiment, you will need:
An LED is a component that emits light whenever there is a current flowing through it. It will have one long leg and one shorter one. The short leg (ground terminal) should be connected directly to the black wire and the longer leg should be connected to your resistor. The resistor is used to limit the current flowing and prevent the LED from burning out.

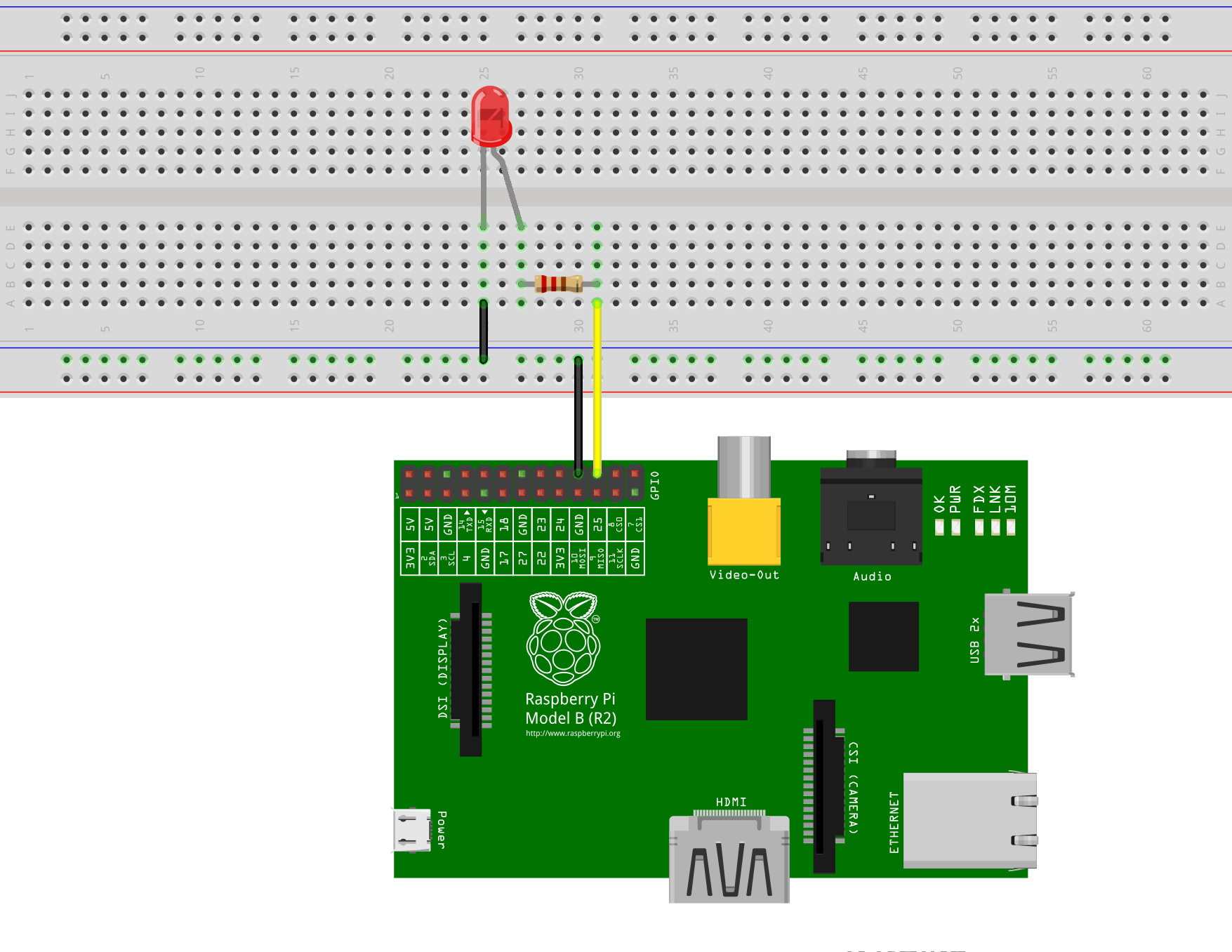

The other leg of the resistor should be connected to the other wire (the red one), as in the following picture:
The Black wire should then be connected to the pin marked 20 (Ground) on your Pi and the red wire should be connected to the pin marked 22 (GPIO6):
Note: If you have a Raspberry Pi model B+, you will have more than 26 pins. However, the assignment for those pins present on both models (B and B+) will still be the same as described here and the project should work without change.

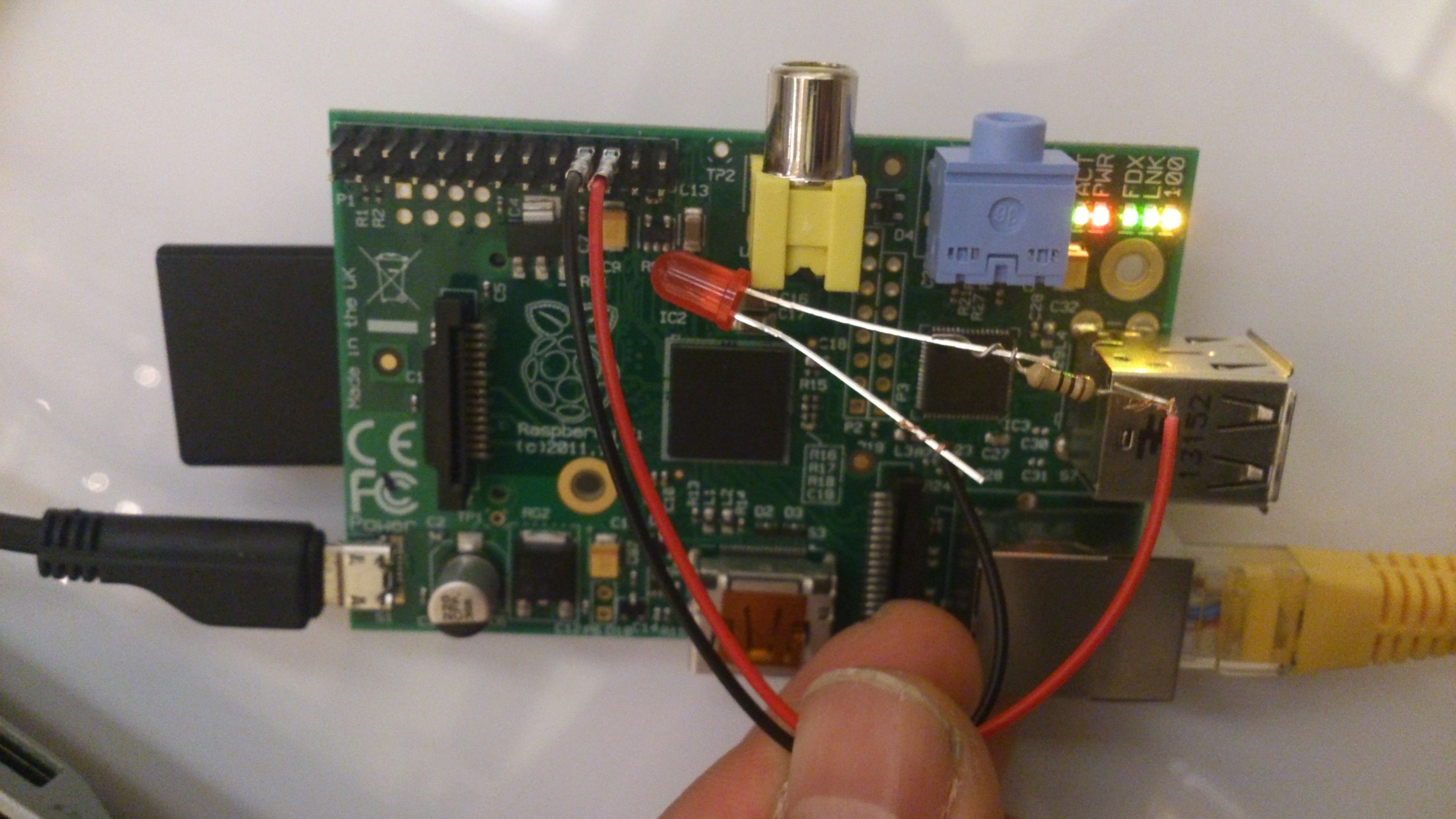

Here is what your circuit should look like:
In BlueJ, open the project LEDButton. Your screen should look like this:
Each of the yellow boxes in the BlueJ screen above is a Java class. The LED class represents the real LED connected to the Raspberry Pi.
The LED, Button and ButtonListener classes are already made and you can use them in the following exercises, but do not change them. The Controller class is where you will write your own code. The Button and ButtonListener classes will be described in Part 2 of this tutorial.
Before we start to write code, we'll see how the LED class affects the real LED by using BlueJ to control it directly.
To start, right-click on the LED class and from the pop-up menu, choose:
new LED()
BlueJ will ask for the "name of the instance": the suggested name is good for now. You will see a red rectangle on the bottom left of the BlueJ window named "lED1":
This rectangular red icon represents the "lED1" object. This object is the Java representation of the real LED connected to the Raspberry Pi.
void on()
This should turn on the LED. (It might take a moment the first time, as all the behind-the-scenes connections are made).
If you look at Figure 6, you can see that we can also create a LED specifying a gpio number. We didn't need to do that because the default gpio number is the gpio number 6, where we connected our LED.
Tip: The LED Class contains its own documentation showing all the available methods and a brief description of each of them. To see them just double click in the LED class (yellow box) and its documentation (javadoc) will show up:
Tips:
Tips:
sleepMillisec(int time)This method can be used in order to make your program wait a given number of milliseconds. 1 millisecond is a very short time.
Tip:
The morse code for SOS is: ". . . - - - . . .", where a dot (.) is a brief flash and a dash (-) is a longer flash
Make use of the flash method implemented in the previous exercise.
